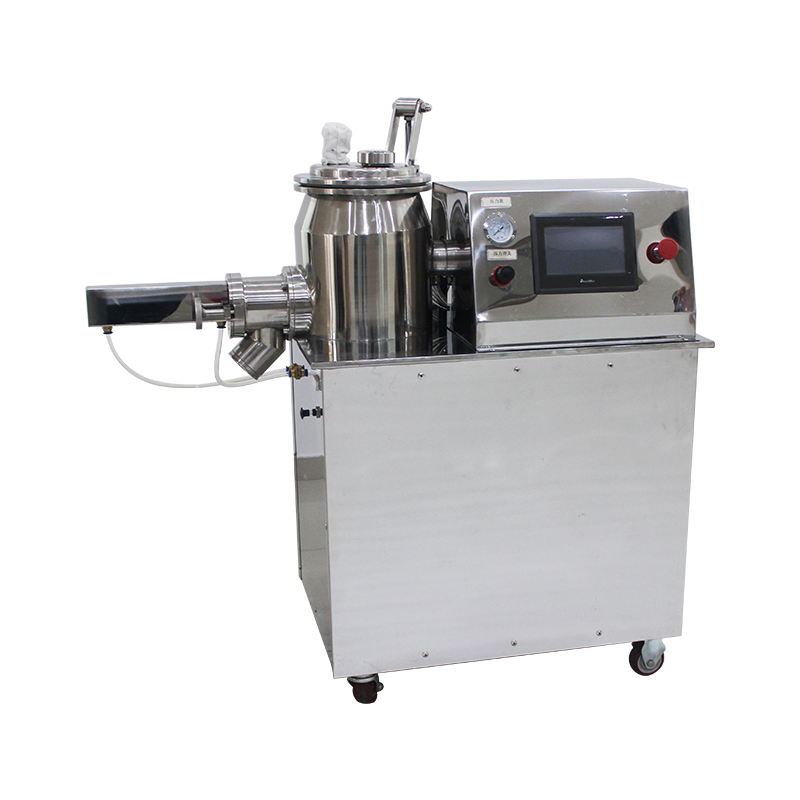

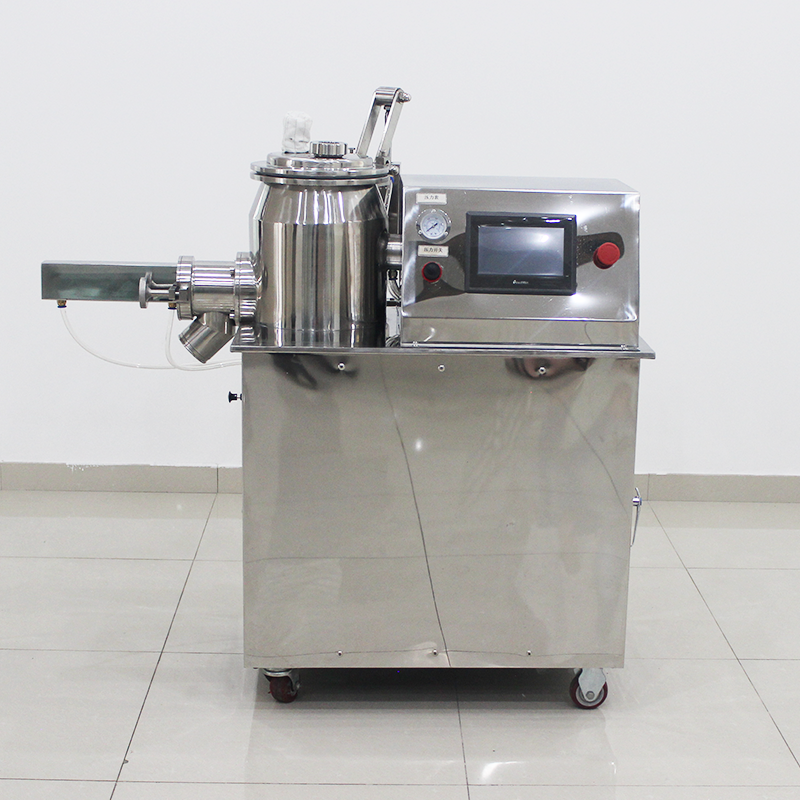

Device name: | Small wet mixing granulator |
Equipment type: | qfn - ane - 10 |
Output: | 15kg/batch to 200kg/batch (custom made) |
Test machine: | Support test making experiment |
Scope of application: | The powders and adhesives are fully mixed into a wetting material in a cylindrical container by bottom mixing slurry, and then cut into uniform wet particles by a side-mounted high-speed pulverizer. Short granulation time, high efficiency and energy saving. When the main drugs and excipients differ greatly, they can still achieve uniform combination without stratification. |
Application scenario: | Scientific research, chemical industry, food, pesticide, medicine, biological industry, etc. |
Is it guaranteed? | National three year warranty |
Telephone: | 17317246351 |
1.Use description:
The powders and adhesives are fully mixed into a wetting material in a cylindrical container by bottom mixing slurry, and then cut into uniform wet particles by a side-mounted high-speed pulverizer. Short granulation time, high efficiency and energy saving. When the main drugs and excipients differ greatly, they can still achieve uniform combination without stratification.

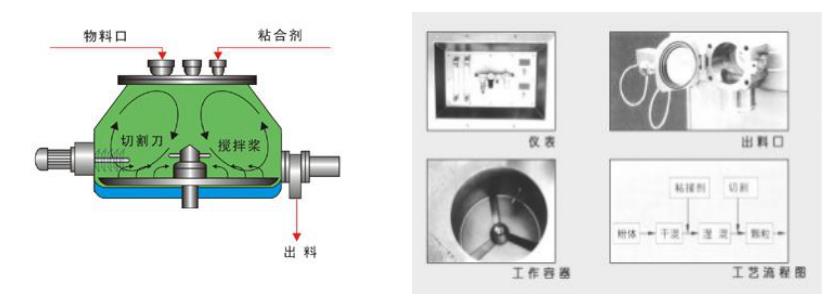

Two.Working principle:
The horizontal cylinder structure is adopted and the structure is reasonable. The inflatable sealing drive shaft can be switched to water when cleaning. The granulation of sulphide granulation is nearly spherical with good fluidity. Compared with the traditional process, the adhesive is reduced by 25%, the drying time is shortened, the dry-wet mixing granulation is completed in the same sealed container, and the process is reduced, which conforms to the GMP specification. The whole operation has strict safety protection measures.
Three, product characteristics:
Four, equipment type and parameters:
Model |
volume |
yield |
Mixing speed |
Hybrid power |
Cutting speed |
Cutting power |
ghl - 50 |
507 |
15kg/batch |
200 / 400rpm |
5.5kw |
1500 / 3000rpm |
2.2kw |
ghl - 150 |
150l |
50kg/batch |
180/270rpm |
15kw |
1500 / 3000rpm |
5.5kw |
ghl - 200 |
200L |
80kg/batch |
180/270rpm |
15kw |
1500 / 3000rpm |
5.5kw |
ghl - 250 |
250l |
100 kg / batch |
180/270rpm |
15kw |
1500 / 3000rpm |
5.5kw |
ghl - 300 |
300L |
130kg/batch |
140/220rpm |
18.5kw |
1500 / 3000rpm |
7.5kw |
ghl - 400 |
400L |
200kg / batch |
106/155rpm |
22kw |
1500 / 3000rpm |
7.5kw |

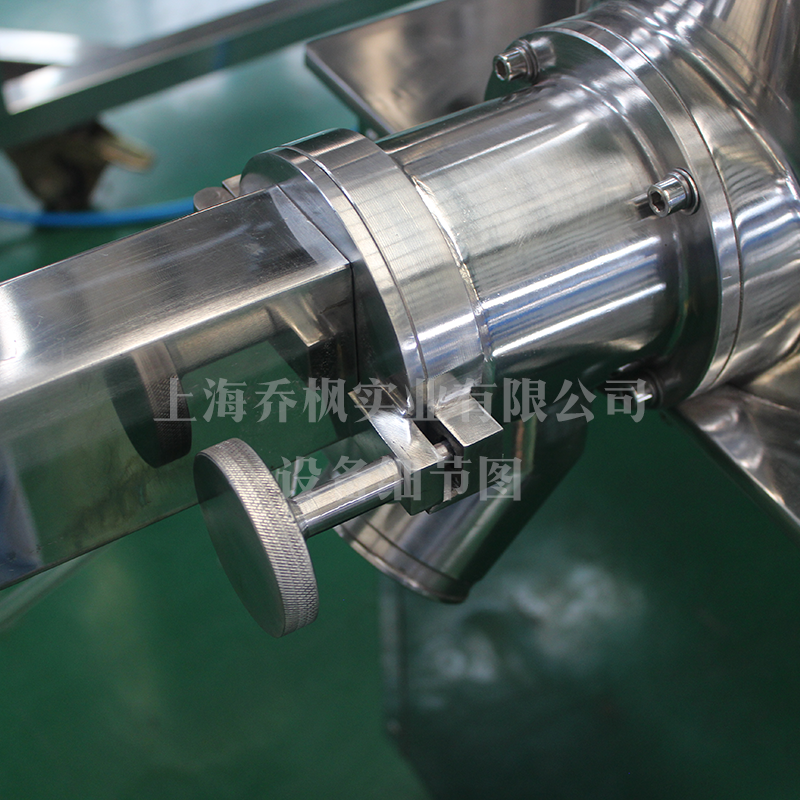

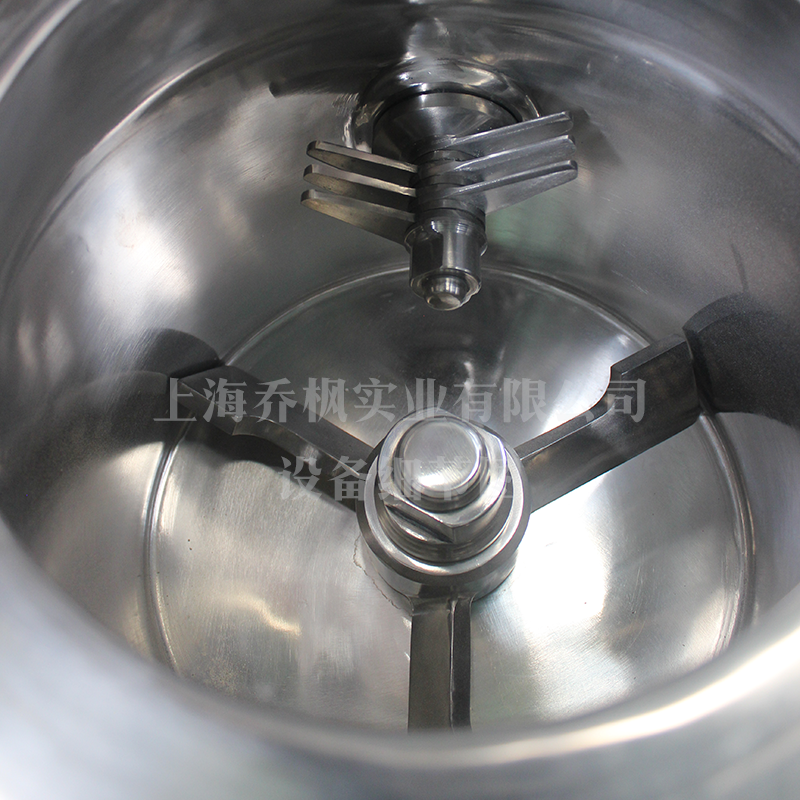

Photo analysis:
