Experimental type / small spray dryer experimental process video
First,Product Profile:
Mini spray dryer 8000T plus cloth bag type customization(spray dryer / spray dryer) and its main application in the laboratories of universities, research institutes and food pharmaceutical and chemical enterprises to produce micro particle powder, which is widely applicable to all solutions such as emulsions and suspensions, and is suitable for drying of heat sensitive substances, such as biological products, biological pesticides and enzyme preparations. High temperature, so it is only instantaneous heating, can maintain these active materials after drying their active ingredients are not destroyed.
Secondly, the main features are as follows:
Qiaofeng refined sprinkler, high efficiency.
Color LCD touch screen parameters display: inlet temperature / outlet temperature / peristaltic pump speed / air volume / needle frequency.
Full automatic control: one button start, set the spray process parameters, the temperature reaches the predetermined temperature, the peristaltic pump starts automatically, the touch screen displays animation and the running process is clearly displayed. When the machine is shut down, it only needs to press the stop button, and the machine automatically and safely shut down.
Manual control: If the process parameters need to be adjusted in the experimental process, it can be easily switched to manual state. The whole experimental process of color touch screen dynamic display (animation)
There is a nozzle cleaner (through needle), which can be automatically cleared when the nozzle is blocked, and the frequency of through needle can be automatically adjusted.
Shutdown protection function: Just press the stop key when shutdown, and the machine will stop running immediately except for the fan, so as to ensure that the heating part of the equipment will not burn out due to misoperation (forced shutdown of the fan).
The spray, drying and collection system is made of transparent high-quality borosilicate heat-resistant glass material, so that the drying process can be carried out in a non polluting environment.
Built-in imported oil-free air compressor, the diameter of powder spraying is normal distribution, fluidity is very good, noise is very low, less than 60 db.
Two atomizing structure of fluid spray, the whole machine is made of high quality stainless steel, compact design and no auxiliary equipment.
In the design of drying temperature control, real-time PID constant temperature control technology is adopted to make the temperature control in the whole temperature zone accurate and the heating temperature control accuracy (+1 C).
In order to maintain the purity of the sample, an air inlet filter is equipped.
Feed volume can be adjusted by feeding peristaltic pump, and the minimum sample volume can reach 50ml.
After drying, the granularity of dry powder is more uniform, and more than 95% of dry powder is in the same granularity range.
For viscous materials, there is a nozzle cleaner (through needle). When the nozzle is blocked, it will be automatically cleared. The frequency of through needle can be automatically adjusted.
Innovative tower wall cleaning device, material recovery rate is higher.
Three,Technical parameters:
lab spray dryer
QFN-8000S (customized)
QFN-8000T(customized)
Water evaporation
1500ML
1500ML
Minimum feed rate
80ml
80ml
Drying chamber diameter (mm)
￠300
￠300
Atomization structure
Atomization System (QFN-E-NZI1VER2018-1A)
Electric control system
QFN-CM-ES-VER2018-1A
Maximum intake temperature
~ 250 C (adjustable)
Hot air condition
Air supply
Air supply
Heater capacity
3Kw
3Kw
Blower [power (kw), air volume (m/min)]
[0.25,9.5]
[0.25,9.5]
Compressor [Power (kw), Air Volume (L/min)]
[0.58，108]
[0.58，108]
Electricity (kw)
4Kw
4Kw
Profile size (mm)
(L x W x H)
800×600×1300
800×600×1300
Brief description

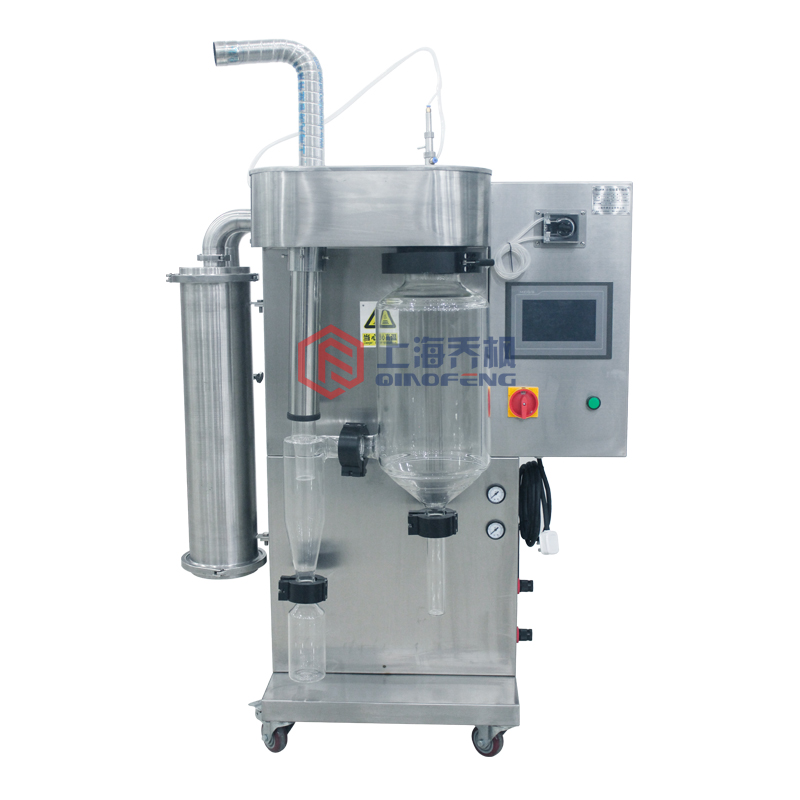

1. Atomization chamber, cyclone separator, material collection bottle and waste collection bottle are made of high borosilicate glass.
2. The chassis adopts SUS304
3. Configuration of original QFN-VER-0.5 drying system
4. Clear view of the atomization process
5. Garbage bag dust removal

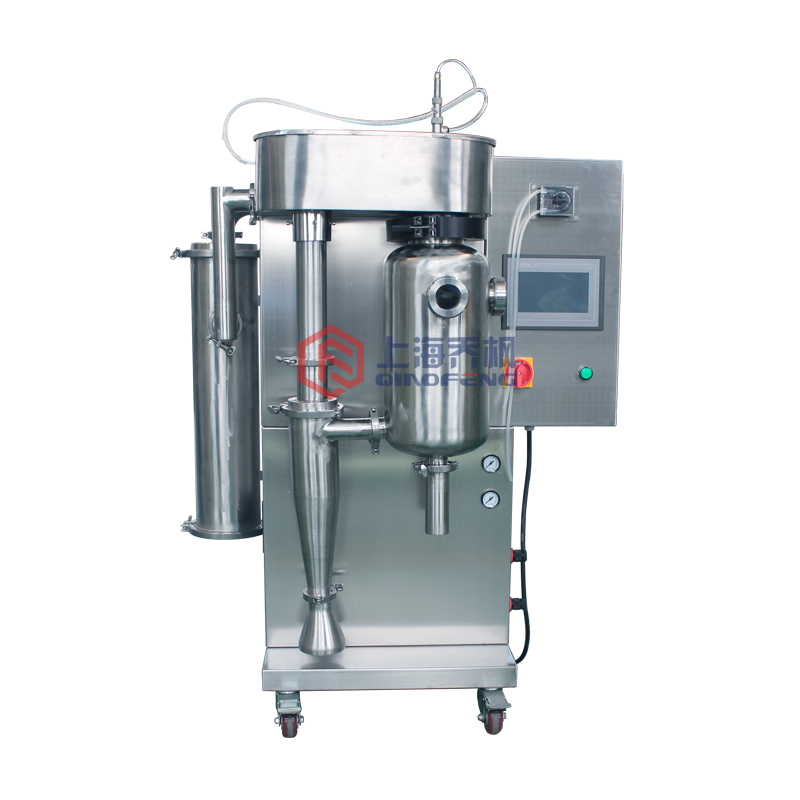

1. Atomization chamber, cyclone separator, material collection bottle and waste collection bottle are made of SUS304 stainless steel.
2. The chassis adopts SUS304
3. Configure original QFN-VER-0.5
drying system
4. Clear view of the atomization process
5. Garbage bag dust removal
Installation Weight (Reference)
100Kg
100Kg
Power Supply
220V/-3(Relevant voltage can be customized according to different national standards)
Note 1: Water evaporation to air temperature 250 C.
2: If you need more evaporation equipment, please inquire online or call our company.
